A text modified from Offshore magazine

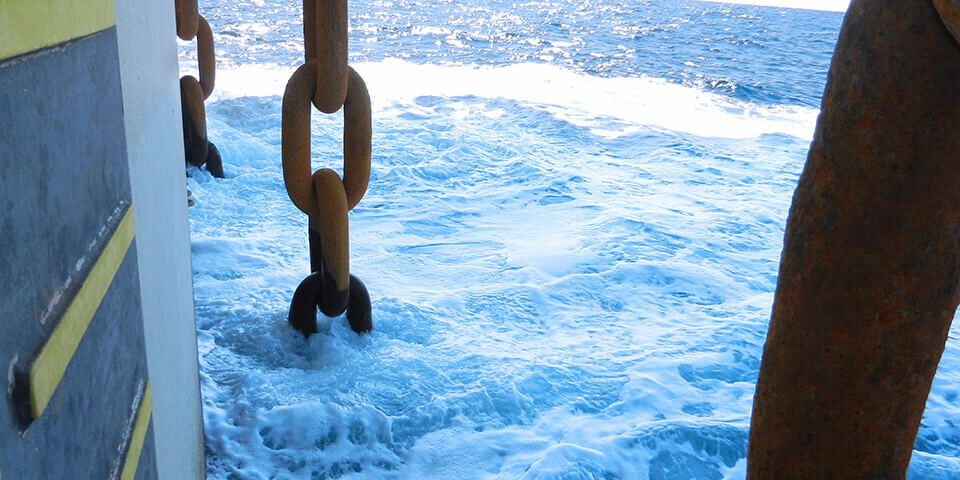

The types of chain in Vicinay Mooring Connectors used in offshore applications is one of two main types, studless or studded. Selection is generally determined by the application. Stud link chain is commonly used in temporary moorings, while the studless chain is usually selected for permanent installations.
The size of the offshore chain varies greatly, from 70 mm (2.8 in.) up to the largest ever manufactured at 182 mm (7.2 in.) in material diameter, weighing around 500 kg (1,102.3 lb) per link. The offshore chain today is also produced in various grades, typically R3, R4, and R5.
Chain is selected to meet certain strength and fatigue requirements, using mooring analysis tools and classification society standards. Normally, chains are designed as if they will be working under straight tension. Sometimes, however, the chain’s structural integrity needs to be assessed under special operating conditions, which can be more demanding.
For instance, chains and other components can be analyzed in detail when operated with topside hardware such as fairleads, bending shoes, chain stoppers, and trumpets or when subjected to other forces, including torsion, out-of-plane bending fatigue, or special handling during installation.
Finite element analysis (FEA) techniques are used to obtain stress concentration factors and to calculate the fatigue life expected using the appropriate S-N curve. FEA techniques are also used to verify chain strength and safety factors.
FEA software, such as Abaqus, can be useful during the early design stage to identify the most reliable and cost-effective choice of chain diameter and grade, which improves the reliability of the mooring system.
Connector design and testing
The extensive use of multi-component mooring lines necessitates the use and design of tailor-made solutions to join the anchors, chains, wires, and polyester elements that make up a mooring system. Using the proper fittings, mooring components of diverse nature can be effectively connected.
In Vicinay we try to respect our values such as equality, sustainability and innovation. As a result, we work to offer the best products with the highest quality. Economic, environmental and social sustainability is so important for us. Therefore, our organisation meets the needs of today’s generations without compromising the needs of tomorrow’s generations.
Once the conceptual engineering design plans define how the equipment will be connected, 3D CAD tools are used to build the prototypes and check the interfaces among the components. It is important for offshore personnel or remotely operated vehicles to assemble and detach connectors quickly during installation. Therefore, special fittings or kits are sometimes specified.
The detailed design optimizes component sizing and allows weight savings to be achieved while maintaining the necessary safety factors. With this in mind, the recently introduced grade R5 chain, with tensile stress over 1,000 MPa, has been applied successfully on numerous projects during the past two years.
The strength and fatigue of connectors for permanent systems need to be documented by testing and/or analysis.
FEA is carried out to verify the connectors’ structural integrity, often with an additional corrosion allowance. The fatigue life is then assessed using the corresponding S-N curves, load histograms, and the appropriate stress/load ratio obtained from the FEA.
Only after considerable testing and analysis are the designs approved and classified, after which, manufacturing drawings are generated, and then the connectors can be manufactured for use in the field.
